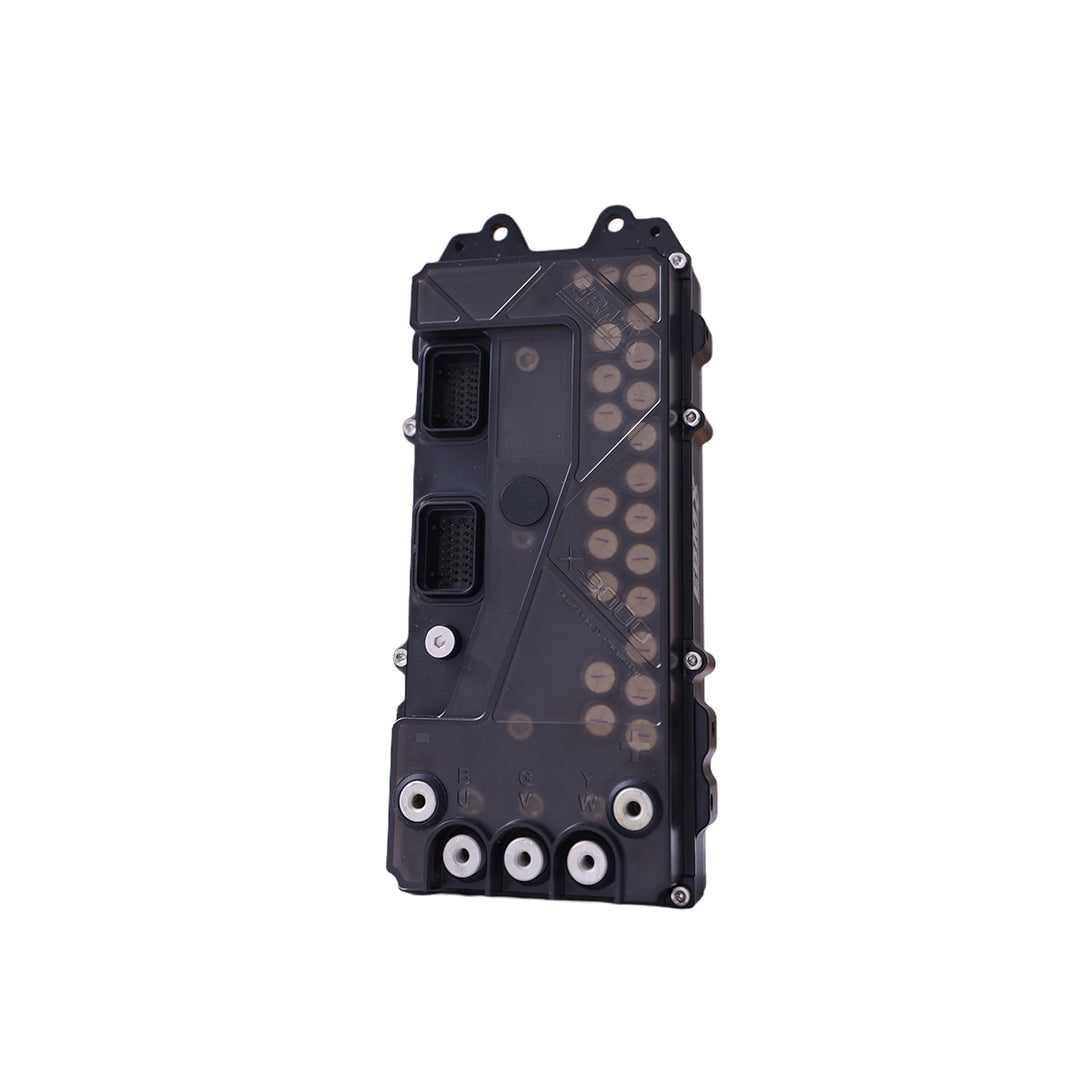

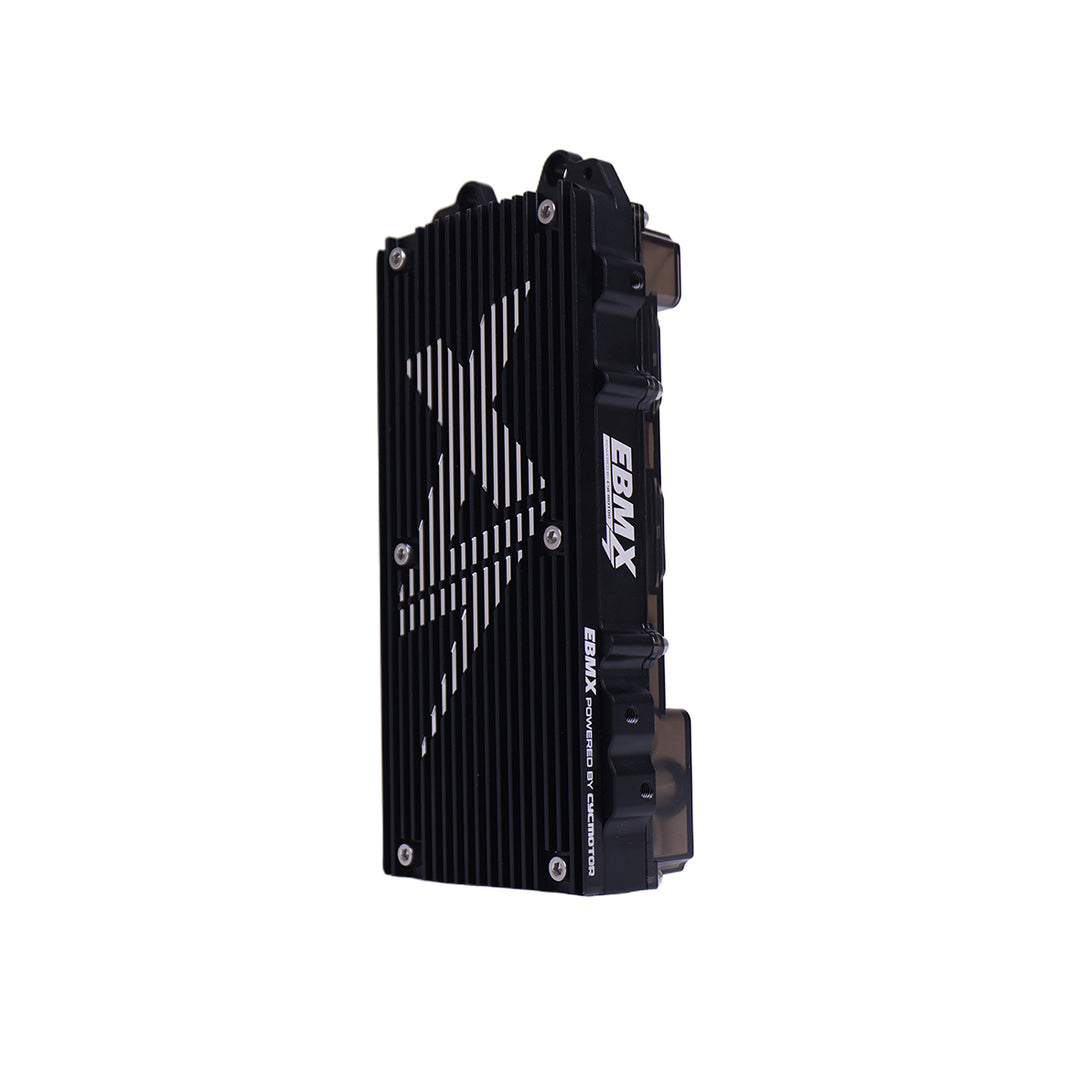

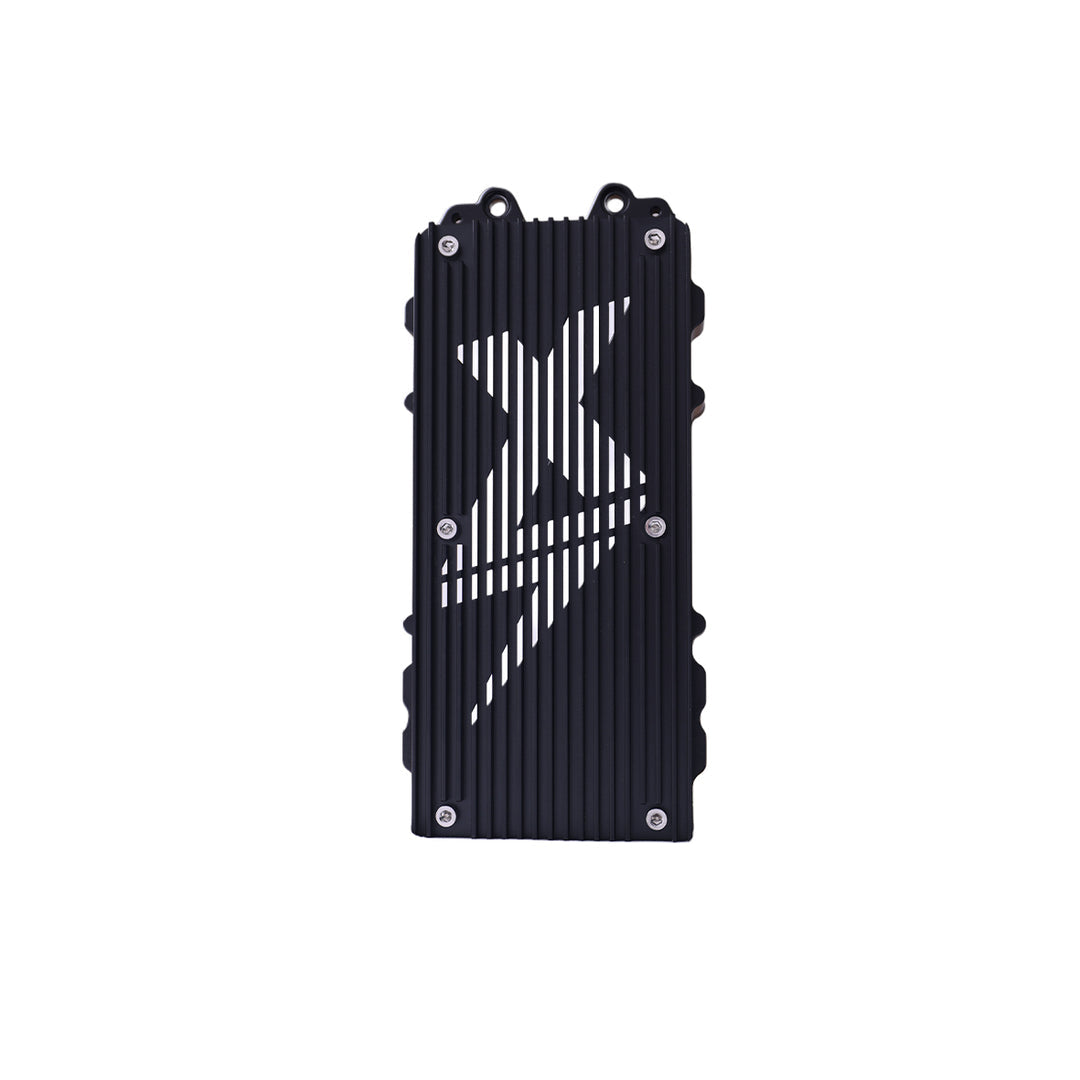

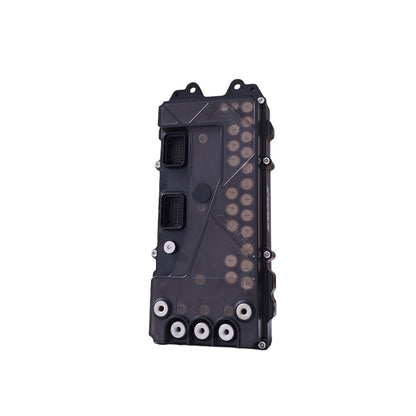

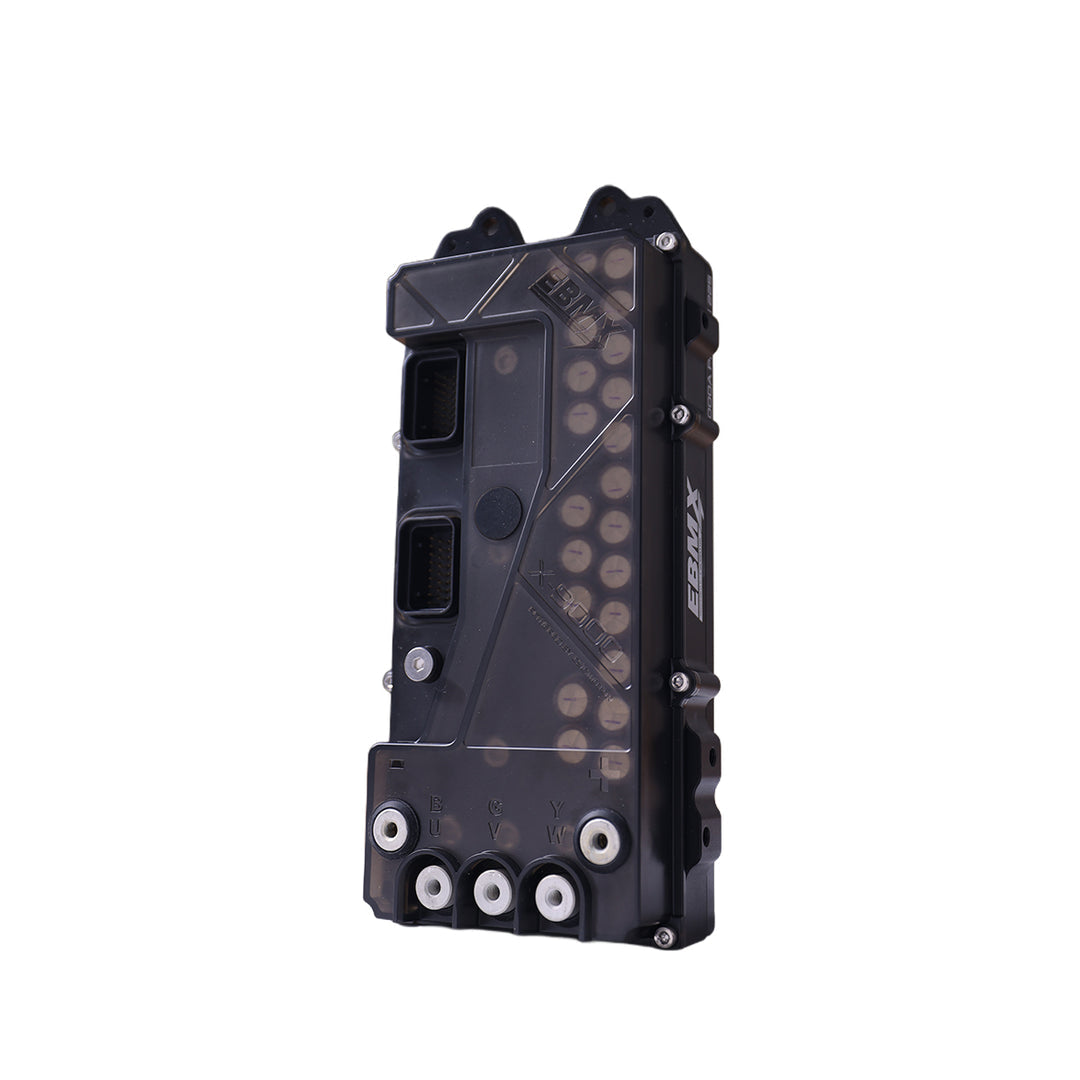

EBMX X-9000-V3 Controller Kit

Built from the ground up for serious riders and racers, the EBMX X-9000-V3 is more than a controller — it's a complete performance ecosystem. Re-engineered power stage, cutting-edge logic, and a redesigned user interface make it the most advanced, rider-tuned controller on the market. Streets, trails, or racetrack — unmatched power, precision, and customization.

Features

50kW output | 1000A phase current | 1600A burst
30 120V Infineon MOSFETs for performance and reliability under extreme conditions
Redesigned multilayer PCB & CNC copper busbars for superior thermal control
Water-cooling option for race-level endurance
IP67 rated, CNC alloy case — built to take the punishment
Industry-leading 68 IO support — runs anything from race bikes to full-featured builds
Custom EBMX VESC firmware with Field-Oriented Control (FOC) for silky smooth throttle, enhanced motor control, and greater efficiency
Integrated IMU for Wheel Lift Assist — fully programmable for launch control, anti-loop, or stunt mode
Dual hall throttle ready — two ADC inputs for increased throttle safety and reliability
6 fully customizable power levels (Race + Street modes)
Graphical UI for throttle tuning, regen braking & EBMX E-Clutch
Load & Go battery profiles — over 15 plug-and-play setups
Preloaded motor tunes — 30+ motors supported out of the box
One-touch OTA firmware updates & compatibility expansion
