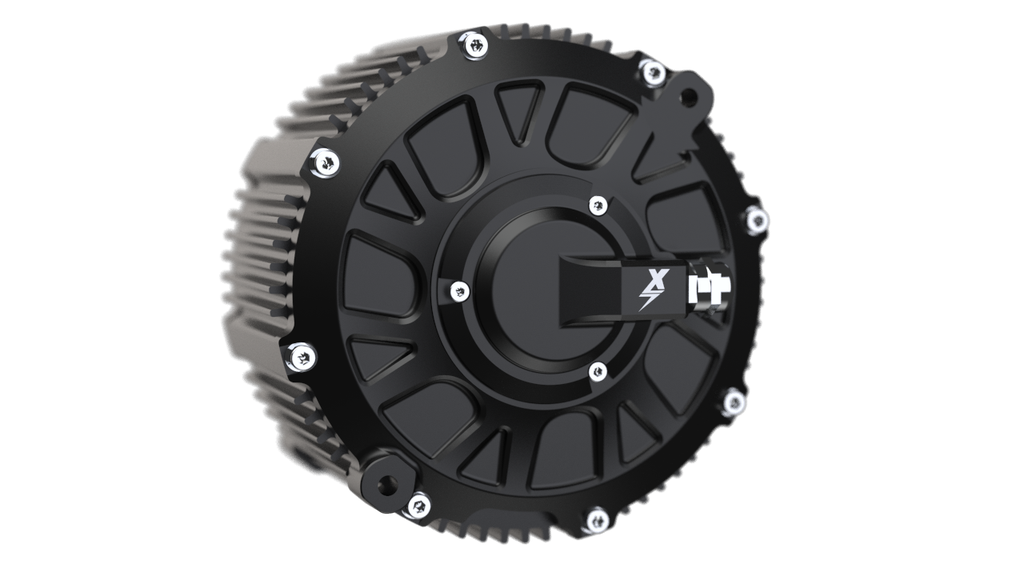

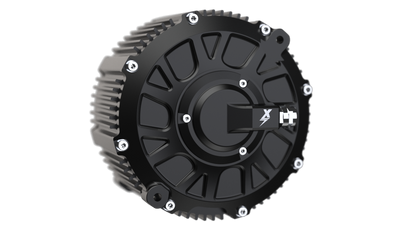

EBMX XLB-60 RACE Motor

The EBMX XLB-60 RACE was designed to surpass every motor in its class. Built to stay cool under race conditions so you focus on riding, not motor temps — track, street, or trail, if you want the best, this is it.

Features

• 35KW rated and tested, designed from the ground up to handle the heat — 180C rated windings with U42H magnets
• Custom IPM rotor design with industry-leading 1mm rotor air gap, revving out to a rated 13000RPM
• Encoder-based motor control for increased low-end torque response and smooth, predictable power delivery
• Encoder sensors track motor position at all speeds and more frequently than hall sensors — no estimated rotor positions, no current spikes from wheel spin or sudden deceleration with rapid throttle changes that trip controllers and cut throttle power
• Finely tuned to work with the EBMX X-9000 controller; works with many other controllers but may require your own custom tuning

Includes

• EBMX XLB-60 RACE Motor
• Custom EBMX Bash Plate

Recommended Gearing

• Off Road: 18 inch 58T-64T (75MPH top speed with 64T/72V)
• Off Road: 16 inch 54-58T
• Off Road: 17 inch 56T-60T

Recommended X9000 Settings (400Amp BMS 20S/22S)

• 1000 Phase / 30KW
• 900 Phase / 25KW
• 800 Phase / 20KW

Need more range? Try turning field weakening to 0%. With a 64T sprocket off-road on 21/18 wheels, 65MPH is easily achievable on a 72V battery — increasing range by up to 15%.

Real World Motor Testing Results

Your results may vary based on rider weight, gearing and battery performance.

• 85KG rider, 75KG EBMX-built Surron, 64T sprocket
• 1000 phase amps / 500 DC amps
• 20S 72V race battery: peak power 32-34KW
• 22S 81V race battery: peak power 36-38KW

Fitment

• Surron Light Bee

Note — IMPORTANT SAFETY CONSIDERATIONS: These motors are significantly faster than standard motors and their extreme speed can pose serious risks if not handled with caution.

1. NOT INTENDED FOR ROAD USE: EBMX Motors are NOT designed for use on public roads or crowded areas. Strictly for off-road use and controlled environments only.
2. EXPERIENCED RIDERS ONLY: Recommended for experienced riders with the skills to handle powerful machines. Novice riders are strongly advised against using these motors.
3. USE WITH CAUTION: The enhanced speed and power require extreme care and attentiveness. Always be aware of your surroundings.
4. UPGRADE SAFETY EQUIPMENT: Ensure your bike has upgraded brakes and safety features capable of handling the increased speed and power. Using stock brakes or inadequate safety measures may result in accidents and severe injuries.
5. ADHERE TO LOCAL LAWS: Know your local off-road vehicle regulations. Ride within designated areas and private tracks only.
6. KEEP AWAY FROM CHILDREN: These motors are not toys. Never allow minors or inexperienced individuals to operate them.
7. RIDE RESPONSIBLY: Never operate under the influence of any substance that could impair judgment.

By purchasing and using EBMX Motors products, you acknowledge the inherent risks of high-speed off-road motor use. EBMX shall not be liable for any injuries, accidents, damages, or losses from improper usage, negligence, or failure to adhere to this disclaimer.
